| Place of Origin |
Shanghai China (Mainland) |
| Model Number |
DN20 |
| Brand Name |
AS |
| Material |
Stainless Steel |
| Technics |
Other |
| Type |
Coupling |
| Connection |
Male |
| Shape |
Reducing |
| Head Code |
Hexagon |

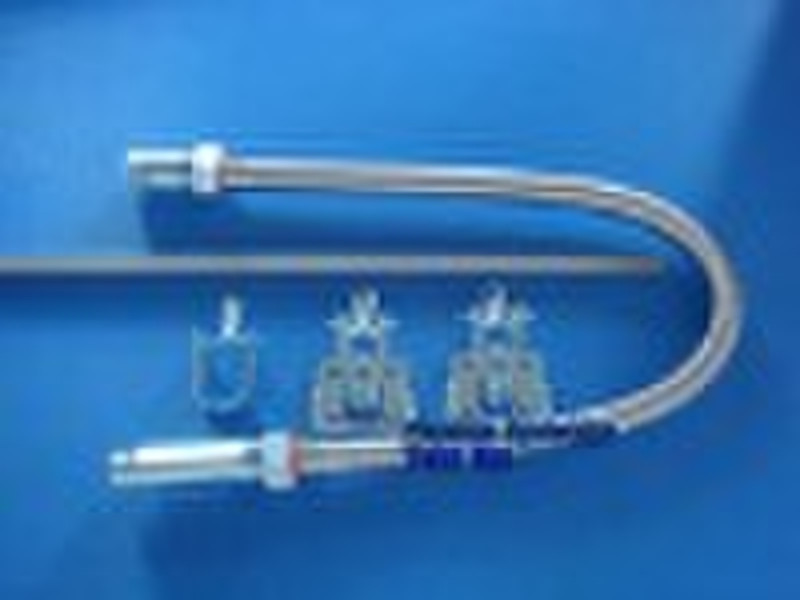

Technical Feature: Temperature Rating: max300° F(149centigrade) Pressure: max working pressure: 200 psi/1375kpa Test pressure:1000psi/6875kpa(burst) connection: To branch line(inlet):1inch NPT male thread. To sprinkler head(outlet):1/2inch or 3/4inch NPT female thread. Minimum bend radius:3inch (76mm). Do not bend within 21/2 inch from connection nut. Maximum number of bends per flexible tube:3 Technical Feature: Temperature Rating: max300° F(149centigrade) Pressure: max working pressure: 200 psi/1375kpa Test pressure:1000psi/6875kpa(burst) connection: To branch line(inlet):1inch NPT male thread. To sprinkler head(outlet):1/2inch or 3/4inch NPT female thread. Minimum bend radius:3inch (76mm). Do not bend within 21/2 inch from connection nut. Maximum number of bends per flexible tube:3
